Graham Foot, the legend that founded the KIS bicycle supercross track in Gloucestershire, dropped by the office today with a van full of Dartmoor bikes.

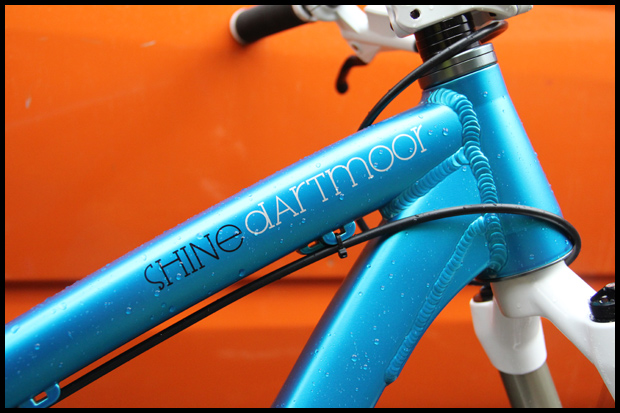

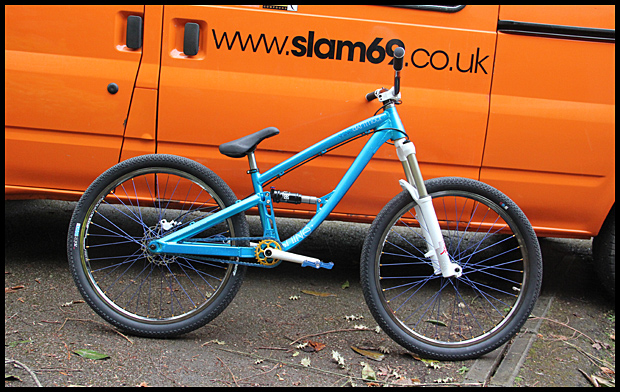

Graham brought along the spanking new Dartmoor Shine slopestyle bike and the 4x Phantom.

We’ll have a more info on the Shine in the magazine soon, in the meantime I thought you might like to see a few snaps of the Dartmoor goodies.

With out Shock – £692
with X-Fusion Glyde R-PV coil shock – £827
with X-Fusion O2 RCX air shock – £962

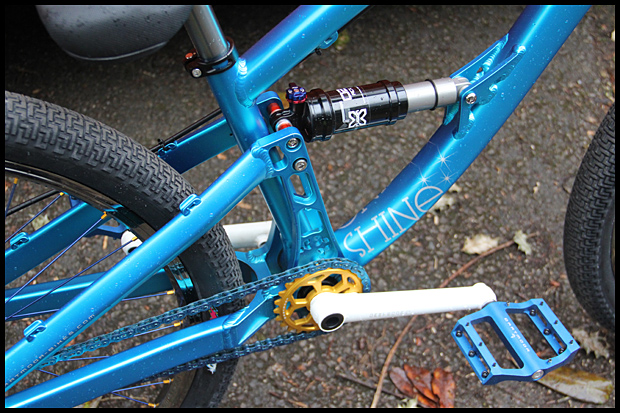

Made of butted and heat treated 7005 aluminium tubes. BB-centric pivot and horizontal dropouts lets you run a perfect singlespeed drive where suspension movement does not change chain tension. Simple suspension design with multipoint linking and big bearings on the BB make the construction as stiff as the typical DJ hardtail frame.

Main changes comparing to 2010 frame: tapered HT; ISCG-05 mount; custom designed, shorter dropout; new profiles of CS and SS tubes; shorter chainstay.

Frame travel: 100mm.
Shock: 190x50mm.
Suspension ratio: 1:2.
Rear triangle: 403mm.
Top tube: 554mm.
BB: Euro 73mm.
Seat post diam.: 27.2mm.

Dropouts: 135x10mm.
Size: 11.2
Weight: 2.85kg (w/o shock in raw brushing option).

Available in turquoise, silver and green.

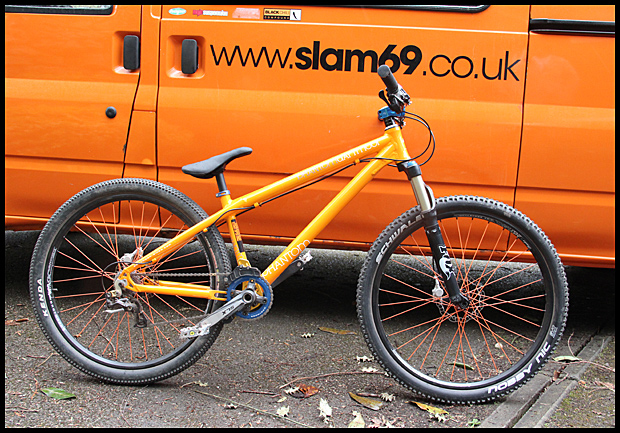

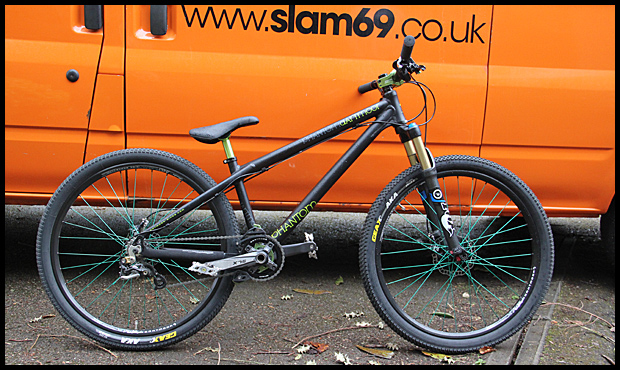

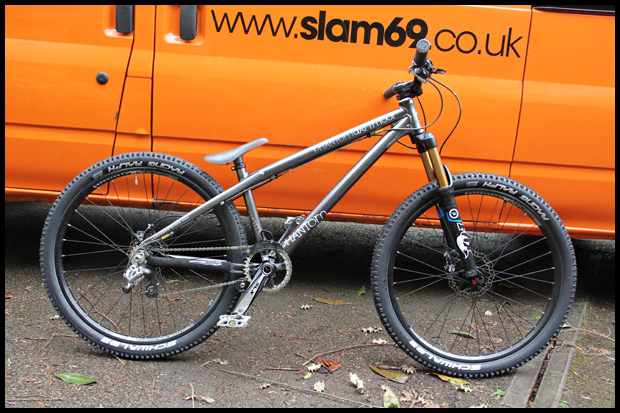

Ultra light 4X/dual slalom frame made of butted and heat treated alu 7005 tubes.

New custom BB shell with the ISCG-03 mount and new plate between SS tubes to make this area stronger. Head tube for semi-integrated headsets.

Rear triangle: 400mm.
Top tube: 580mm.
HT angle: 69°.
BB: Euro 68mm.
Seat post diam.: 27.2mm.
Dropouts: 135x10mm. Size: 13,5″.
Weight: 1.88kg.

Frame only £239

Available in graphite, black and orange.

Checkout www.slam69.co.uk for more info.
