The Postie just dropped off this super pimp looking Dialled Ti Alpine hardtail frame.

The Bike Chain (www.thebikechain.co.uk) have got together with Dialled Bikes (www.dialledbikes.com) to produce two super bling Ti Alpine prototype frames a 16" and an 18". We've got the 16" which we'll be building up and testing soon.

dialledalpine2
dialledalpine2

If there's is enough genuine interest from you lot then they will go into production.

Hit up Mark at shop@thebikechain.co.uk if you're serious about wanting one.

The featherlight Ti Alpine tipped the Dirt Office scales at just 1.54kg.

dialled alpine

Me and the original Alpine at the Megavalanche...happy days!

I'd love to know how this one rides as back in the old days I spent alot of time on the Alpine and loved it.

Geometry wise, the new Ti frame is the same as the MKII Alpine.

Sizes:

16" and 18" (measured from centre of BB to top of seat tube)

Effective Top Tube Lengths:

16" frame = 22.25"

18" frame = 23.25"

Head Angle:

68.5 degrees

(recommended travel 130mm)

Seat Angle:

74 degrees

Chain Stay Length:

16.73"

BB Height:

12.76"

Seat Post Size:

31.6mm

Front Mech Size

34.9mm top pull (shims supplied with frame)

BB Shell:

73mm with integral ISCG

Max Rear Disc Size:

185mm

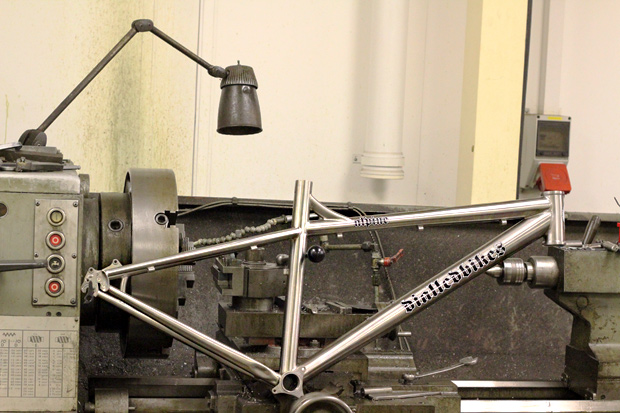

dialledalpine5
dialledalpine5

Cost wise...you're going to be looking at around the £1100 mark for the frame, hit up Mark at shop@thebikechain.co.uk if you're interested.

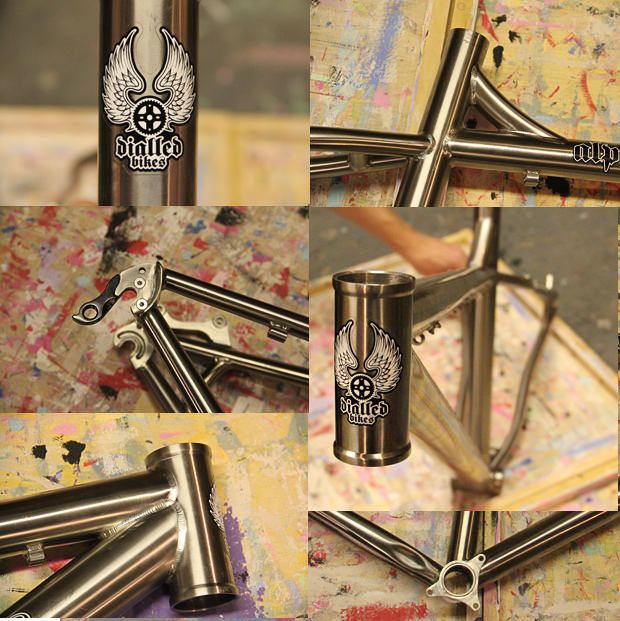

dailled4
dailled4

Stay tuned and we'll let you know how we get on with the Ti Alpine.
